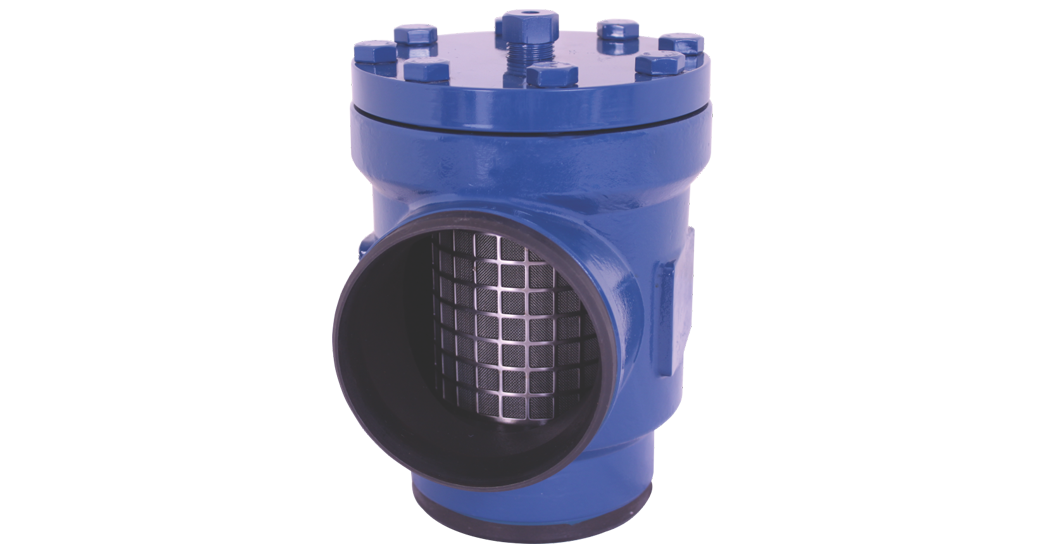

ANGLE TYPE CFIA TYPE STRAINER

ANGLE TYPE CFIA TYPE STRAINER

  • Housing and bonnet of low temperature steel.

  • Filter net of stainless steel mounted direct without extra gaskets means easy servicing.

  • Each filter clearly marked with type, size and performance range

ANGLE TYPE CFIA TYPE STRAINER

ANGLE TYPE CFIA TYPE STRAINER

Range Temperature range – 46°C to +150°C
Pressure range: 40 bar g (580 psi g).
Application Applicable to all common non flammable refrigerants including R717 and non corrosive gases/liquids dependent on sealing material compatibility.

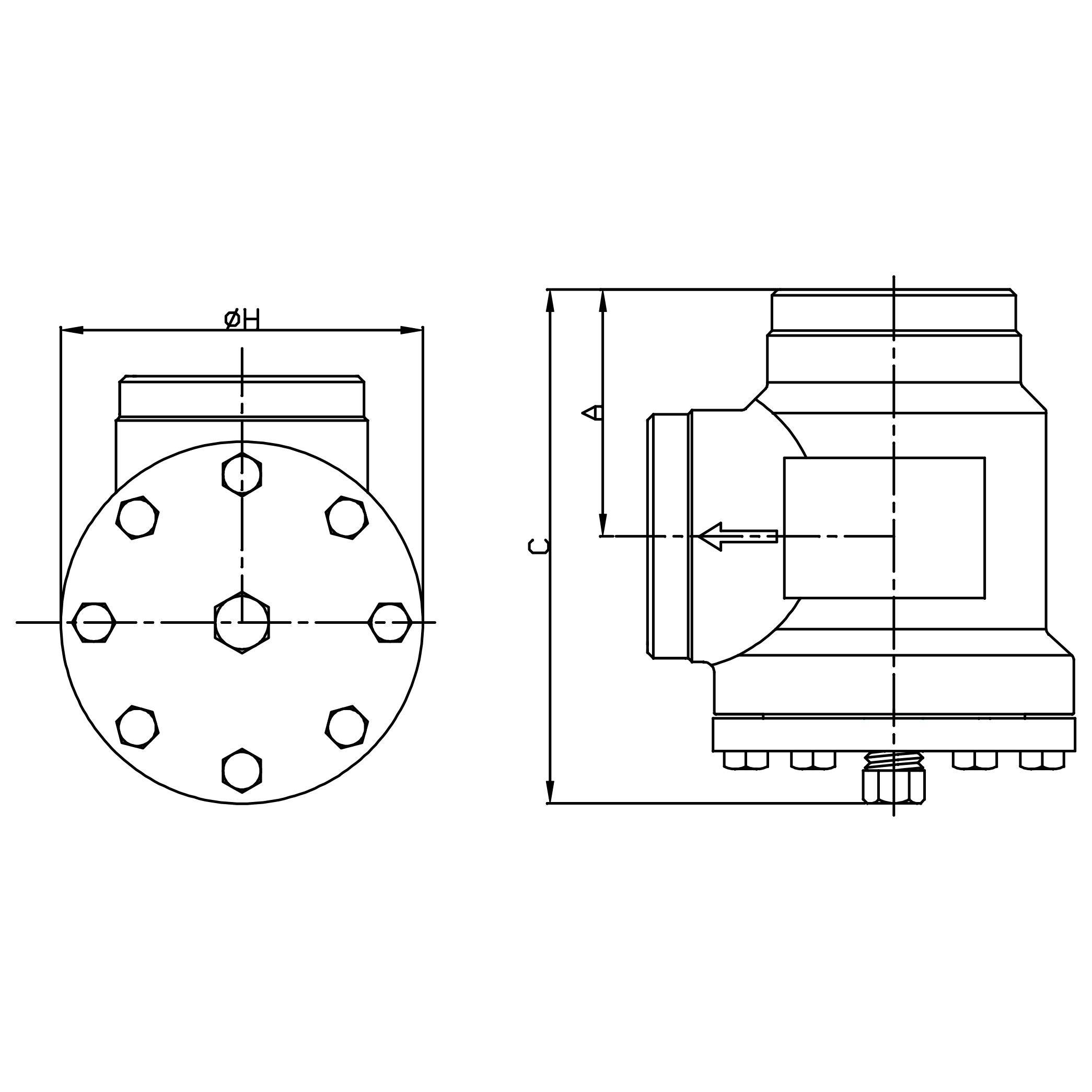

Angle Way

Filter Size A C H
CFIA 15-20 mm
CFIA (1/2-3/4)in		 36
1.40		 105
4.10		 50
2.0
CFIA 25 mm
CFIA (1)in		 44
1.70		 119
4.70		 60
2.40
CFIA 32mm
CFIA (1 1/4)in		 55
2.20		 125
5.0		 70
2.70
CFIA 40mm
CFIA (1 1/2)in		 55
2.20		 143
5.60		 70
2.70
CFIA 50mm
CFIA (2)in		 60
2.40		 136
5.30		 80
3.10
CFIA 65mm
CFIA (2 1/2)in		 69
2.70		 155
6.10		 90
3.50
CFIA 80 mm
CFIA (3)in		 90
3.50		 188
7.40		 132
5.20
CFIA 100 mm
CFIA (4)in		 105
4.10		 228
9.0		 158
6.20
CFIA 125mm
CFIA (5)in		 133
5.20		 280
11.0		 209
8.20
CFIA 150mm
CFIA (6)in		 145.5
5.70		 315
12.40		 218.5
8.60
CFIA 200mm
CFIA (8)in		 180
7.0		 380
15.0		 278
11.0
