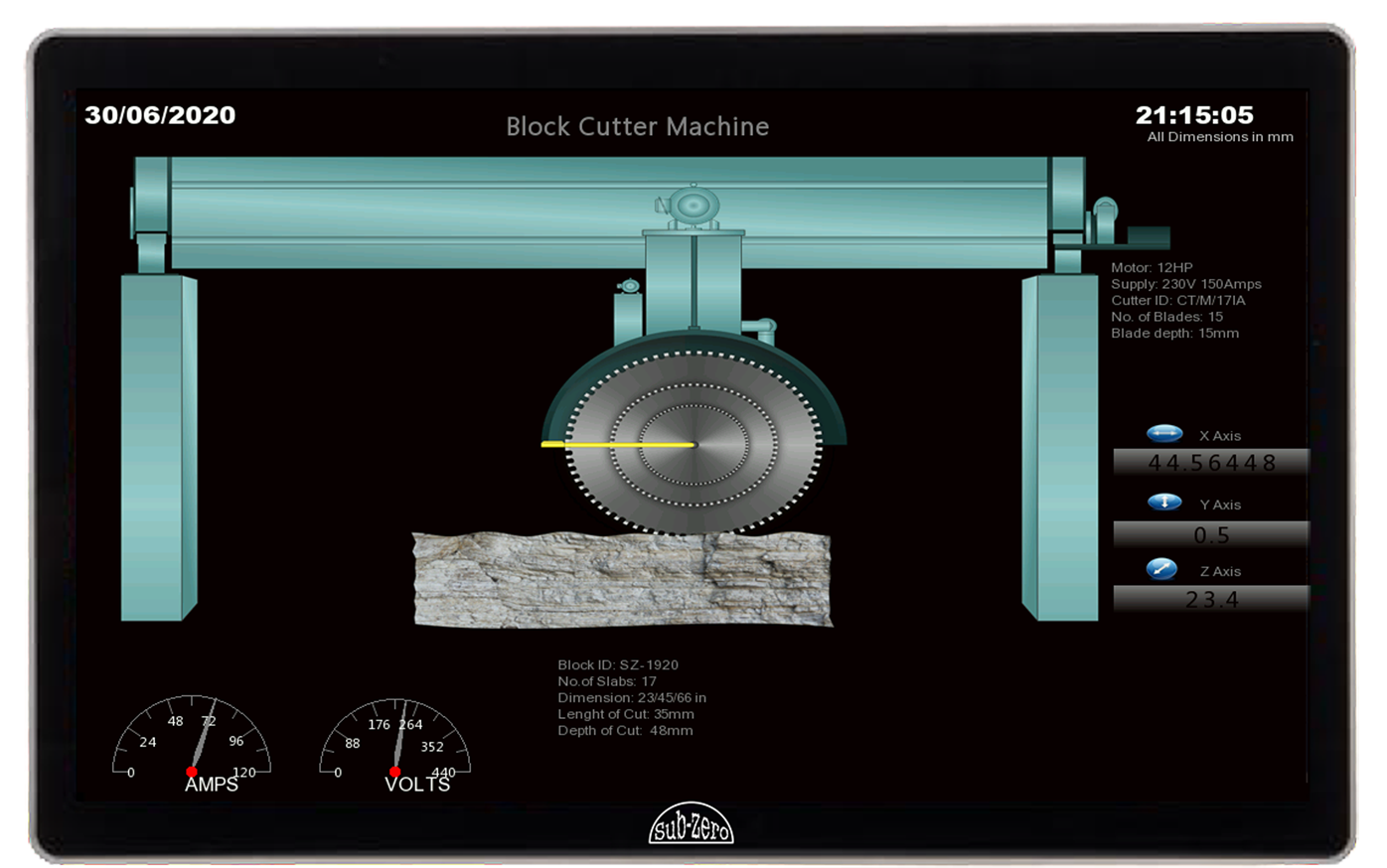

SZ-5170 | Data Logger

Multi-touch capacitive touch screen, sensitive and clear, scratch-resistant, no drift.
The main board is treated with a special coating (three anti-paint) to adapt to harsh environment.
Support multiple handheld operations, more friendly human-machine interaction experience.
High resolution, high brightness, wide viewing angle.
New configuration software, rich library, powerful features.
3-way serial port, With Ethernet port, more powerful expansion function.

Display	17" TFT LCD, full HD, wide
Resolution (WXH)	1280 X 1024
Colors	24-bit Colors/16-bit Colors
Brightness	350 cd/m2
Backlight	LED
Backlight Life	50000 hours
Touch Panel	Glass + Glass projective multi-touch capacitive HMI
CPU	800 MHz ARM Cortex-A8
Memory	256MB Flash + 256MB DDR3
RTC	Built In
Ethernet	10M/100M Ethernet
SD Card	Supporting
USB Port	1USB Host 2.0, 1 USB Device 2.0
COM Port	COM1/COM2: RS232/RS485/RS422 COM3: RS232
Power Consumption	< 18W
Input Power	DC 24V, Input Range: DC 18V - 28V
Power Protection	Protected from thunderstrike and surging
Power Down Allowed	< 5mS
CE & RoHS	Complied with EN61000-6-2:2005 EN61000-6-4:2007, RoHS
Operating Temperature	-10 to 60°C
Storage Temperature	-20 to 70°C
Operating Humidity	10-90% RH (No Condensation)
Vibration Endurance	10-25Hz (X/Y/Z 2G/30Min)
Cooling	Natural air cooling
Degree of Protection	Front IP65 (with NEMA Panel), Back IP20
Shell Material	Front cover made by aluminum, and the surface with hard oxide treatment; The back cover is made of galvanized sheet, and the surface is with dry spray treatment.
Panel Cutout (WXH)	370mm X 304mm or Wall Mounting Installation
Dimension	392mm X 325mm X 62.5mm
Weight	About 5800g
DownloadProject	USB Disk/USB Device/Ethernet
