HVACR ELECTRICAL PANELS

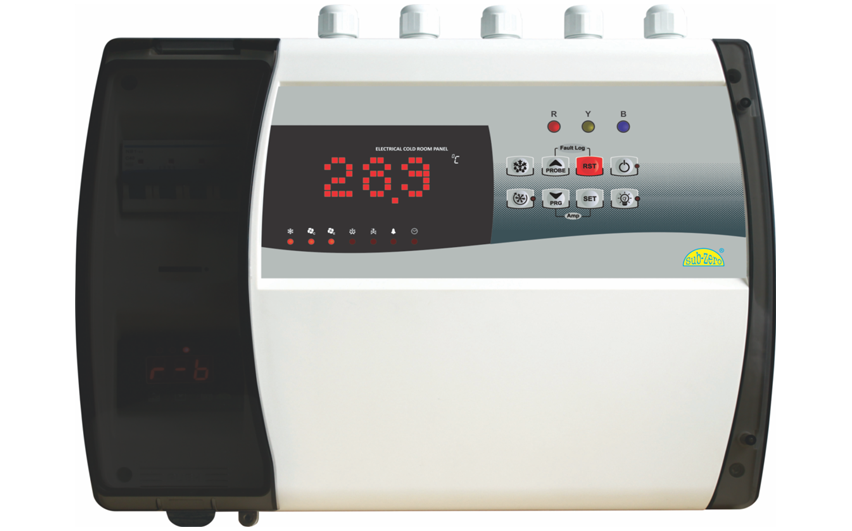

LOW TEMPERATURE ELECTRICAL COLD ROOM PANEL CRC-205200

LOW TEMPERATURE ELECTRICAL COLD ROOM PANEL CRC-205200

  • 4 Digit, 1” Dot matrix Display to display all parameters

  • Precise temperature Range : – 50.0°C to + 50.0°C and Resolution 0.1° C

  • Computer Connectivity over RS485 and Remote monitoring(Optional).

  • HP/LP , AUX faults for compressor protection.

LOW TEMPERATURE ELECTRICAL COLD ROOM PANEL CRC-205200

Display 4 Digit, 1” Dot matrix Display

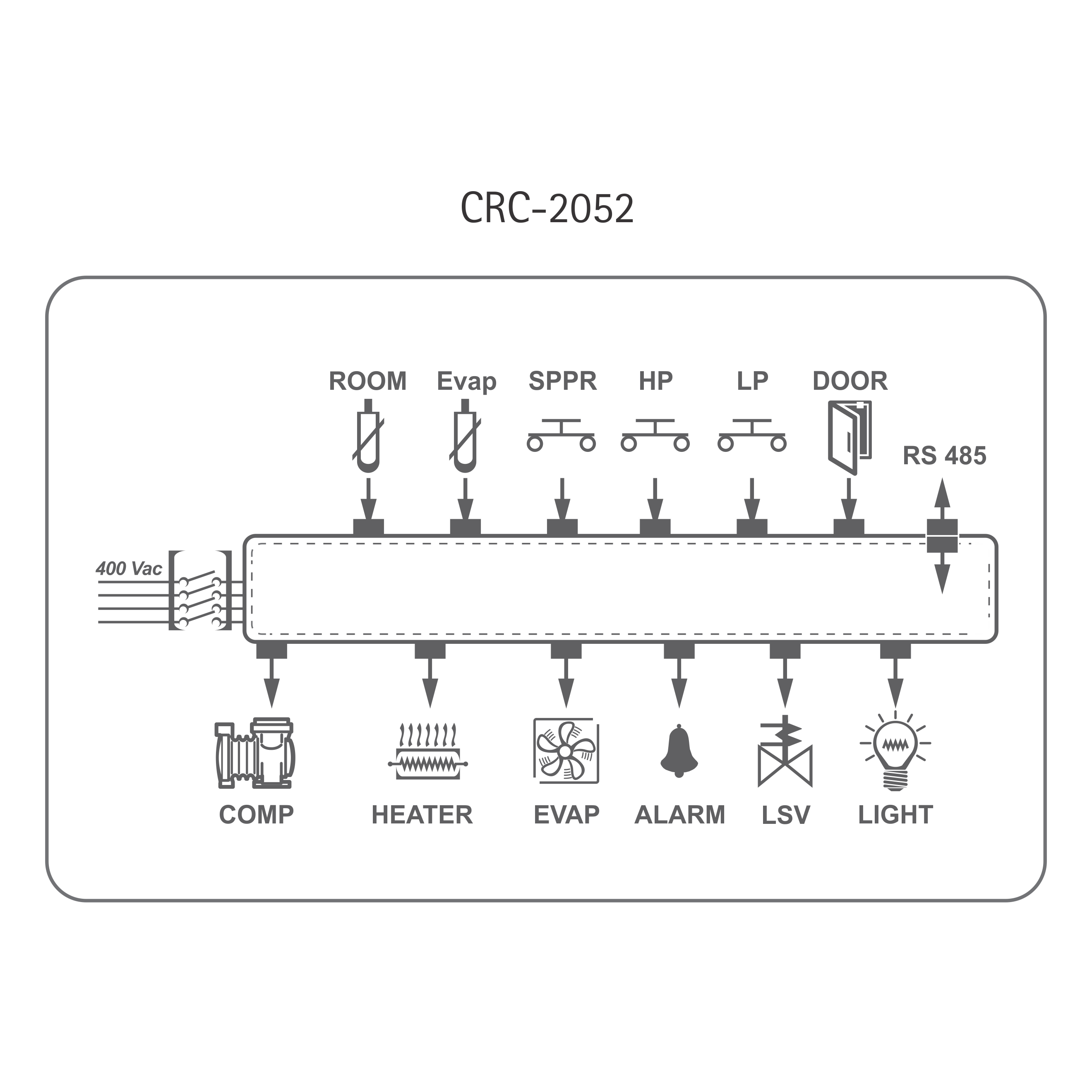

Probe Inputs NTC, Evaporator, Current Sensing
Digital Inputs HP, LP, SPPR, AUX / CTH, OPS, Digital Door I/P, R-Phase, Y-Phase, B-Phase
Relay Output Compressor Contactor : 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil)
Defrost Contactor : 3 Pole + 1 Aux, 400 V, 18A (230Vac Coil)
Evaporator Fan Contactor : 3 Pole + 1 Aux, 400 V, 9A (230Vac Coil)
Condenser : 8(2)A
LSV : 8(2)A
Light : 5A
Alarm : 5A
Buzzer Yes
Serial Output RS485
Power Supply 415V ±10% 50-60Hz
Temperature Range -50°C to +50°C
Load Type Three-Phase
Main Switch General Protection 4 Poles MCB
LVM 4 Wire Voltage Monitoring & Protection
Size (H) 400 X (W) 300 X (D) 135mm
Mounting Type Wall Mount
Application Cold Room Control Panel

LOW TEMPERATURE ELECTRICAL COLD ROOM PANEL CRC-205200
