Time Based / Automatic Fruit Ripening System Sz-Fr-2000

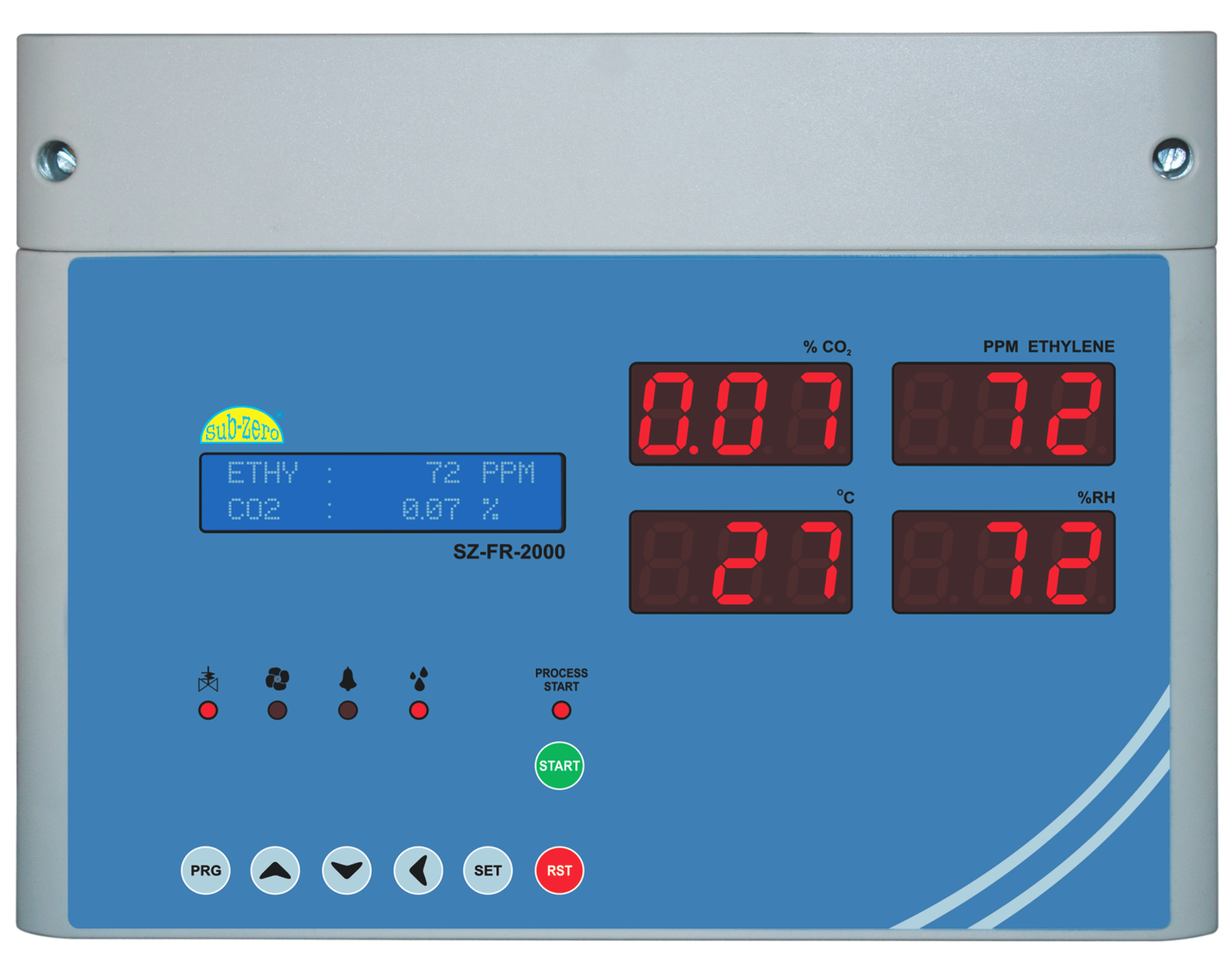

7 Segment LED display & LCD with backlight to display all parameters and control status.
In the absence of a CO2 sensor, Unit will work on an ON/OFF logic provided for Damper operation to vent CO2
Automatic control of Ethylene by operation of a Solenoid valve.
In the absence of an ethylene sensor, unit will work on an On/Off logic provided for ethylene solenoid valve.
Real time clock in case of power failure to keep in memory for number of hours operated.
Time Based / Automatic Fruit Ripening System Sz-Fr-2000
Time Based / Automatic Fruit Ripening System Sz-Fr-2000
| Display | 7 Segment LED Display + 16x2 LCD Display |
| Probe Inputs | Thermostat, CO2, Ethylene, RH |
| Digital Inputs | NA |
| Relay Outputs | Fan : 8(3)A Humidifier : 10A SV : 10A Alarm : 5A Damper : 10A |
| Serial Output | Yes |
| Power Supply | 10 Vac |
| Temperature Range | -40°C to +50°C (NTC Sensor) 0% to 1% (CO2 Sensor) 0 to 999 ppm (Ethylene Sensor) 0 to 100% (RH Sensor) |
| Size | 210 x 121mm |
| Mounting Type | Wall Mount |
| Application | Fruit Ripening System |
