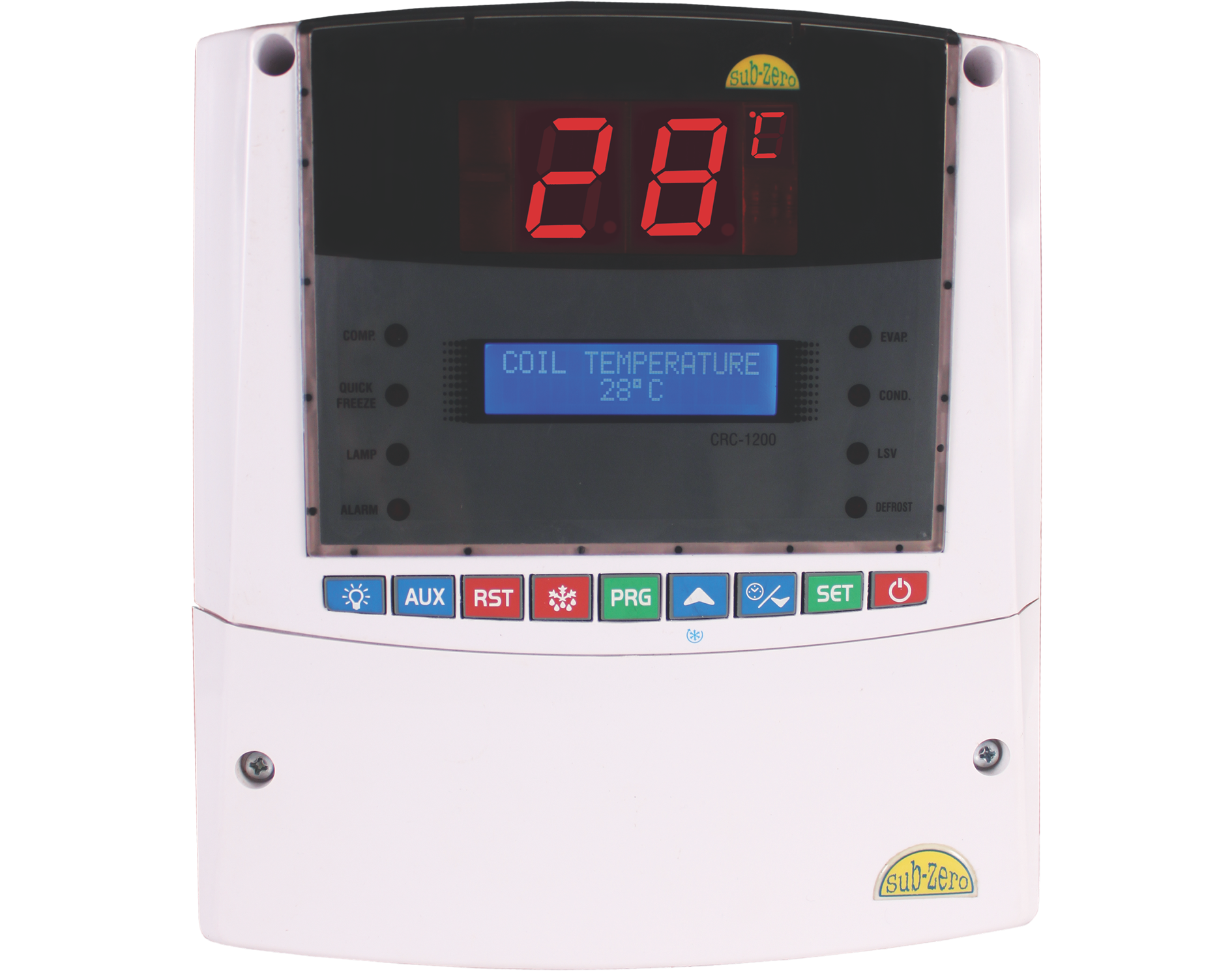

COLD ROOM CONTROLLER CRC-1200
LCD with backlighting to see system status and 1” display for temperature.
2 NTC probes for Cold room temp + Evap. coil temperature.
Computer Connectivity over RS485 and Remote monitoring(Optional).
Fast Freeze mode, Inbuilt RTC, Door Input, Audible alarm.
Relay outputs : Compressor/ Cond.Fan/ Evap. Fan/ Heater/ Alarm.
HP/LP/SPPR trip protection for compressor.
Auto/Man defrosting facility (Time/ Temp based), Power Switch Key.
Last 10 Fault Logs with Date/ Time Stamp.
Serial communication through RS485
COLD ROOM CONTROLLER CRC-1200
COLD ROOM CONTROLLER CRC-1200
| Display | 7 Segment LED Display, 2 x 25.4mm (1”) + 16x2 LCD |
| Probe Inputs | NTC, Defrost (Coil) |
| Digital Inputs | HP, LP, SPPR, Digital Door I/P |
| Relay Output | Compressor : 8(2)A Defrost : 8(2)A Condenser : 8(3)A Evaporator : 8(3)A LSV : 5A Light : 5A Alarm : 5A |
| Buzzer | Yes |
| Serial Output | Yes |
| Power Supply | 230Vac Standard |
| Temperature Range | -50°C to +35°C |
| Size | 200 x227mm |
| Mounting Type | Wall Mount |
| Application | Cold Room Controller |
