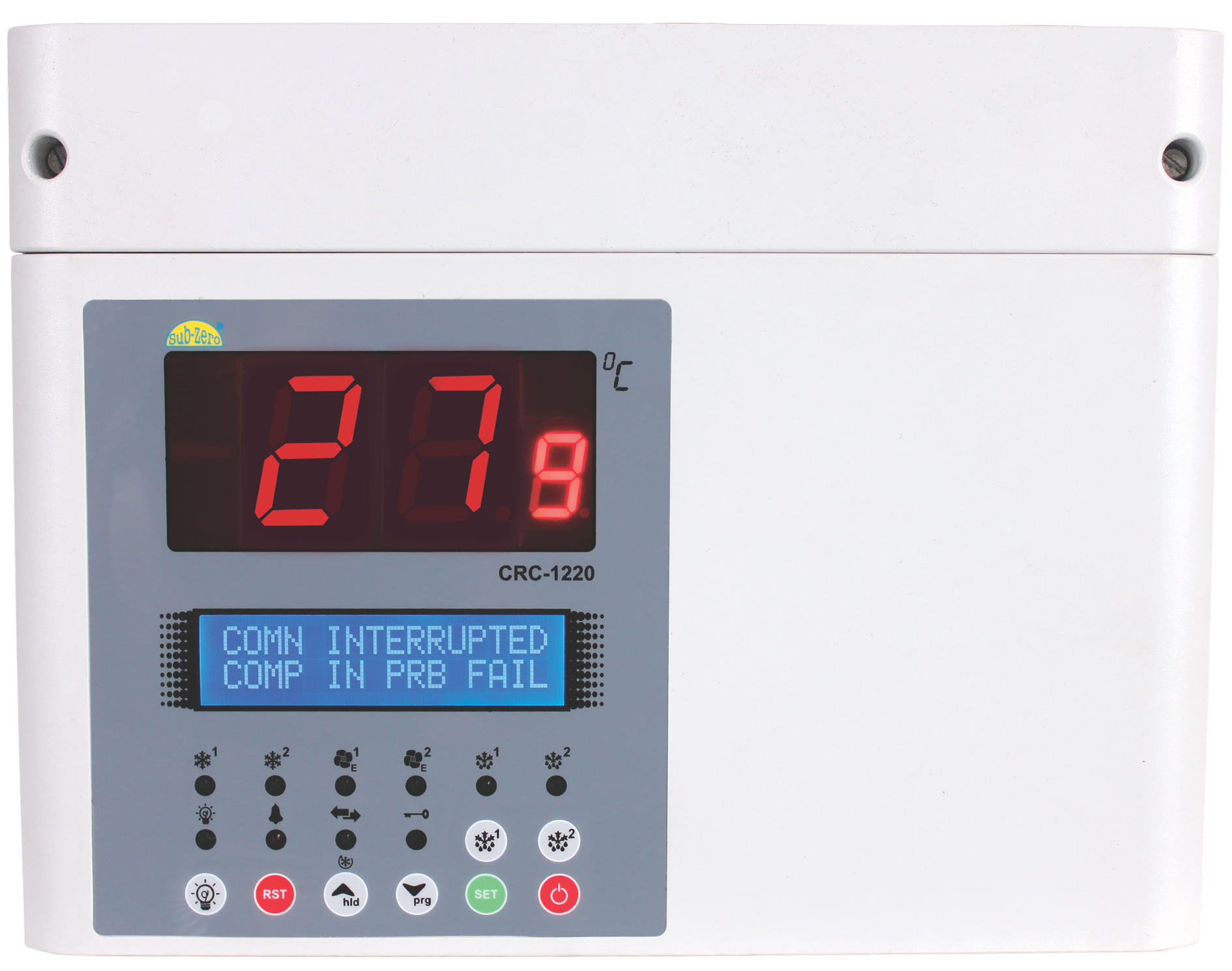

SPLIT TYPE TWIN CIRCUIT COLD ROOM CONTROLLER CRC-1220

SPLIT TYPE TWIN CIRCUIT COLD ROOM CONTROLLER CRC-1220

  • 7 Segment LED Display 2 X 25.4mm (1”) + 16x2 LCD Display

  • Run hours equalization

  • 1 working 1 standby

  • Fault equalization

  • Suited for Low & Medium temperature Cold room applications

  • Provision for Alarm, Light, Individual LSV, Defrost, Condenser & Evaporator outputs

  • Provision for Digital door input, Individual HP, LP & SPP

  • Internal buzzer available

  • Serial communication through RS485

SPLIT TYPE TWIN CIRCUIT COLD ROOM CONTROLLER CRC-1220

SPLIT TYPE TWIN CIRCUIT COLD ROOM CONTROLLER CRC-1220

Display 7 Segment LED Display 2 X 25.4mm (1”) + 16x2 LCD
Probe Inputs NTC, Defrost (Coil 1), Defrost (Coil 2)

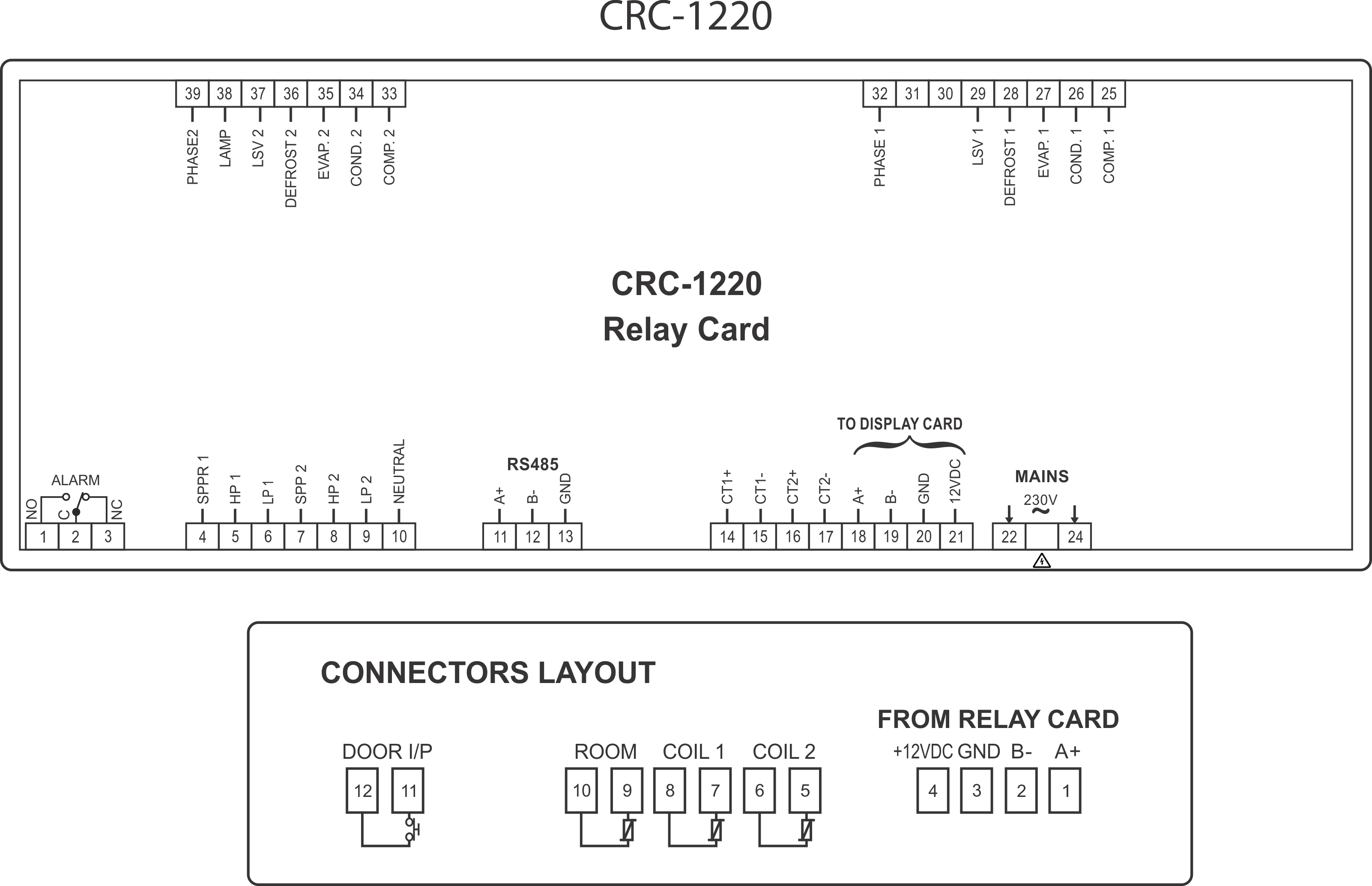

Digital Inputs HP1, LP1, HP2, LP2, SPP1, SPP2, Digital Door I/P
Relay Output Compressor1 : 8(2)A
Compressor2 : 8(2)A
Defrost1 : 8(2)A
Defrost2 : 8(2)A
Condenser1 : 8(2)A
Condenser2 : 8(2)A
Evaporator1 : 8(2)A
Evaporator2 : 8(2)A
LSV1 : 8(2)A
LSV2: 8(2)A
Light : 5A
Alarm : 5A
Buzzer Yes
Serial Output Yes
Power Supply 230Vac Standard
Temperature Range -45.0°C to +35.0°C
Size 210 x 121mm
Mounting Type Wall Mount
Application Low & Medium Temperature Cold Rooms
