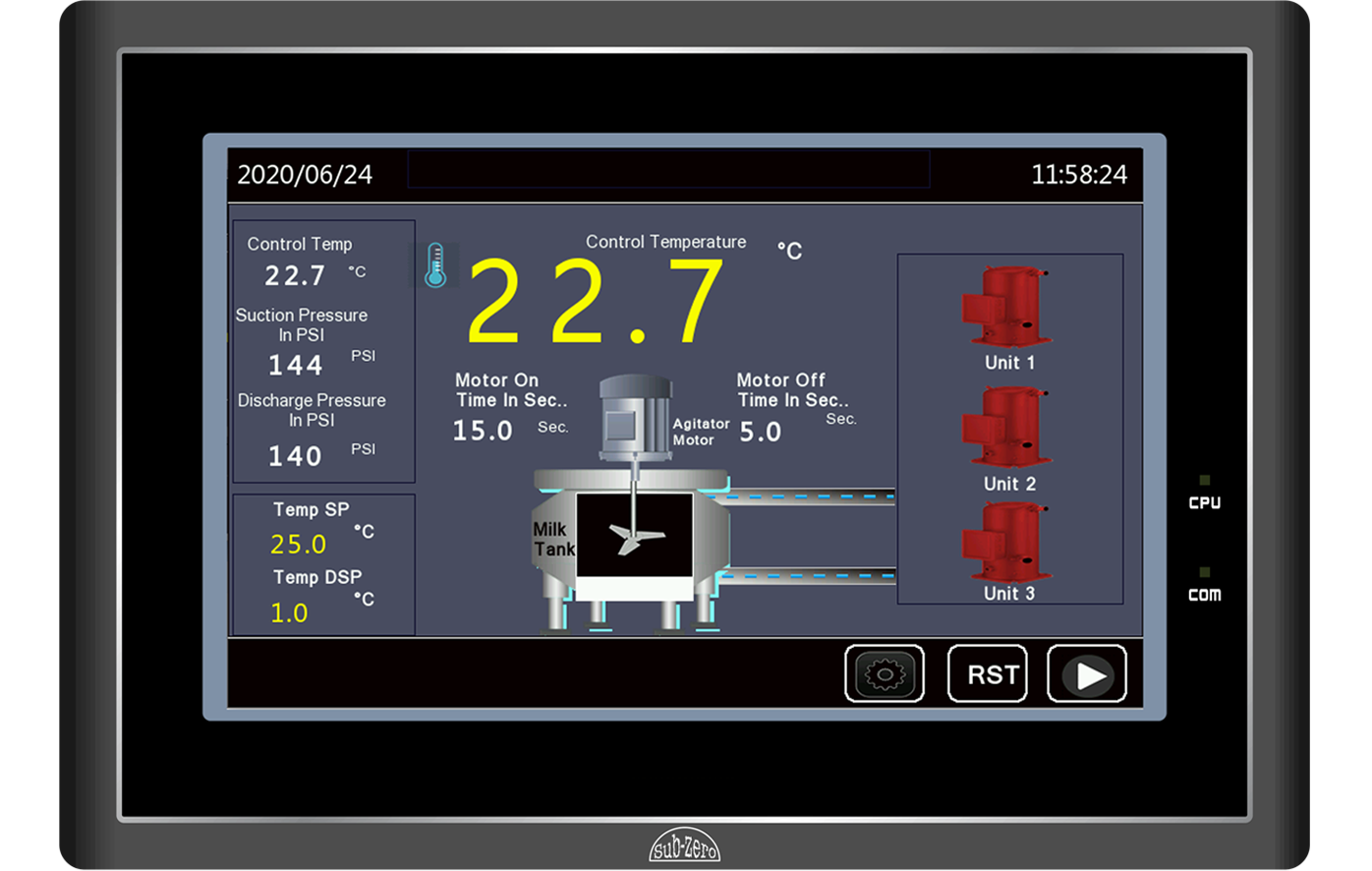

9.7" TFT LCD RESISTIVE SZ4097C

9.7" TFT LCD RESISTIVE SZ4097C

  • Plastic enclosure, high reliability.

  • The main board is treated with a special coating (three anti-paint) to adapt to harsh environment.

  • High resolution, high brightness, LED backlight, More energy saving and environmental protection.

  • The USB host port supports U disk to storage and download data.

  • 4-way serial port, with Ethernet port, more powerful expansion function.

  • New configuration software, rich library, powerful features.

9.7" TFT LCD RESISTIVE SZ4097C

Display 9.7" TFT CD
Resolution (WXH) 1024 X 768
Colors 16-bit Colors
Brightness 360 cd/m2
Backlight LED
Backlight Life 50000 hours
Touch Panel 4 wires resistive touch screen
CPU 600MHz ARM Cortex-A8
Memory 128MB Flash + 128MB DDR3
RTC Built In
Ethernet NA
SD Card NA
USB Port USB Host 2.0*1, USB Device 2.0*1
COM Port COM1: RS232/RS485/RS422
COM3: RS232
Download Project USB Host/USB Device
Power Consumption < 10W
Input Power DC 24V, Input Range: DC 9V-28V
Degree of Protection Protected from thunder strike and surging
Power Down Allowed < 5mS
CE & RoHS Complied with EN61000-6.2: 2005, EN61000-6-4: 2007
RoHS
Surge Immunity: ± 1KV, EFT: ± 2KV, ESD: 4KV, Air: 8KV.
Operating Temperature 0-50°C
Storage Temperature "-20 to 60°C"
Operating Humidity 10-90% RH (No Condensation)
Vibration Endurance 10-25Hz (X/Y/Z 2G/30Min)
Cooling Natural air cooling
Degree of Protection Front IP65 (with NEMA Panel), Back IP20
Shell Material ABS
Panel Cutout (WXH) 259mm X 201mm
Dimension 276mm X 213mm X 39mm
Weight About 1360g
