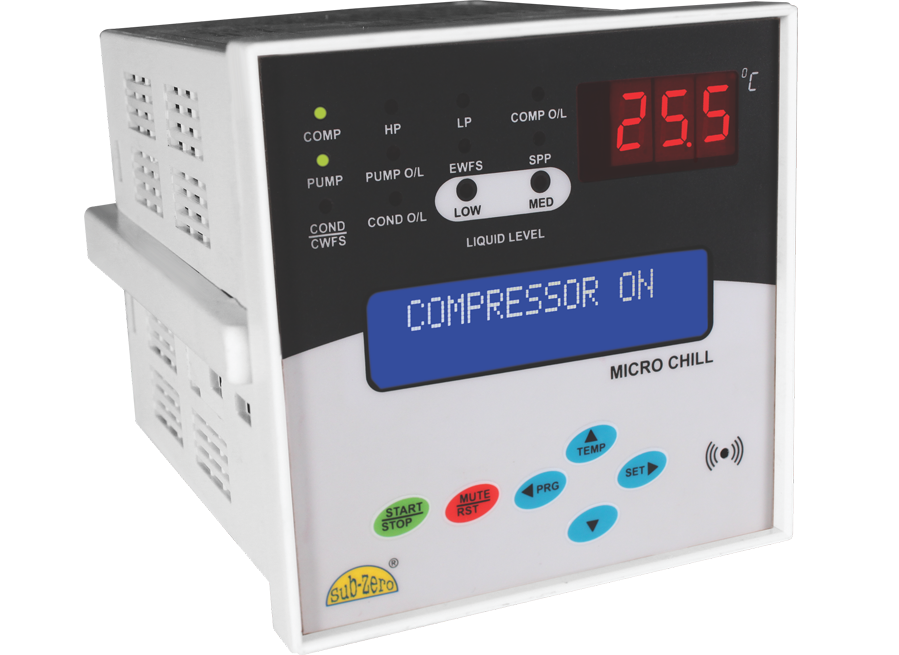

Chiller Controller with LCD+LED MC-110
HP,LP,Comp O/L,Pump O/L, SPP,Cond O/L, EWFS,CWFS trip protection for Compressor.
Auto/Man reset for HP,LP and AFT.
Last 10 Fault History.
Chiller Controller with LCD+LED MC-110
Chiller Controller with LCD+LED MC-110
| Display | 7 Segment LED Display, 3 x 9.1mm (0.36”) + 16x2 LCD |
| Probe Inputs | Control (Liquid), Antifreeze |
| Digital Inputs | HP,LP,Comp O/L,Pump O/L, SPP,Cond O/L, EWFS,CWFS trip protection for Compressor |
| Relay Outputs | Compressor : 8(3)A Pump : 5A Condenser : Pump : 5A Water SV : Pump : 5A |
| Buzzer | Yes |
| Power Supply | 230Vac Standard |
| Temperature Range | -30.0°C to +50.0°C |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount, Panel Cutout : 92 x92mm |
| Application | Chiller Controller |
