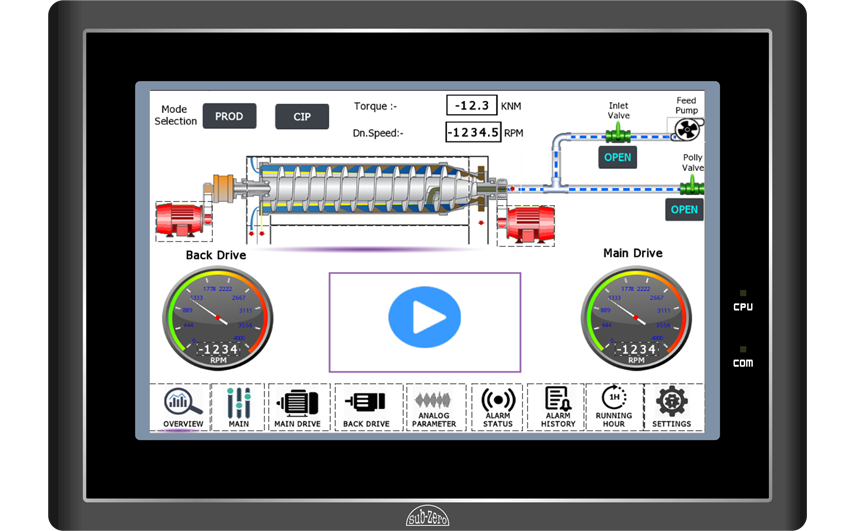

SZ-4097iE | HMI Display Economics

Plastic enclosure, high reliability.
The main board is treated with a special coating (three anti-paint) to adapt to harsh environment.
High resolution, high brightness, LED backlight, more energy saving and environmental protection.
The USB host port supports U disk to storage and download data.
4-way serial port, with Ethernet port, more powerful expansion function.
Isolated power supply, protected from thunder strike and surging.
New configuration software, rich library, powerful features.

Display	9.7" TFT CD
Resolution (WXH)	1024 X 768
Colors	16-bit Colors
Brightness	350 cd/m2
Backlight	LED
Backlight Life	50000 hours
Touch Panel	4 wires resistive touch screen
CPU	600MHz ARM Cortex-A8
Memory	128MB Flash + 128MB DDR3
RTC	Built In
Ethernet	10M/100M
SD Card	Supporting
USB Port	USB Host 2.01, USB Device 2.01
COM Port	COM1/COM2: RS232/RS485/RS422 COM3/COM4: RS232
Download Project	U-Disk/USB Device/SD Card/ Ethernet
Power Consumption	< 10W
Input Power	DC 24V, Input Range: DC 9V-28V
Degree of Protection	Isolated Power Supply, Protected from thunder strike and surging
Power Down Allowed	< 5mS
CE & RoHS	Complied with EN61000-6.2: 2005, EN61000-6-4: 2007 RoHS Surge Immunity: ± 1KV, EFT: ± 2KV, ESD: 4KV, Air: 8KV.
Operating Temperature	0-50°C
Storage Temperature	"-20 to 60°C"
Operating Humidity	10-90% RH (No Condensation)
Vibration Endurance	10-25Hz (X/Y/Z 2G/30Min)
Cooling	Natural air cooling
Degree of Protection	Front IP65 (with NEMA Panel), Back IP20
Shell Material	ABS
Panel Cutout (WXH)	259mm X 201mm
Dimension	276mm X 213mm X 39mm
Weight	About 1000g
