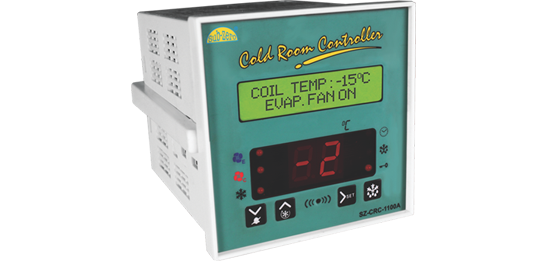

FREEZER / COLD ROOM CONTROLLER SZ-CRC-1100A
LCD with backlighting to display all parameters.
2 NTC probes for cold room temp + evap. coil temperature.
Relay outputs : Compressor + Cond. Fan + Heater + Evap. Fan + Alarm.
Audible alarm.
Digital inputs : 2nos (a) Door switch (b) Pressure cutout.
HP/LP/OSS trip protection for compressor.
Compressor protection algorithm.
Auto/Manual defrosting facility (Time/Temp based).
Special software to indicate probable heater fault.
FREEZER / COLD ROOM CONTROLLER SZ-CRC-1100A
| Display | 7 Segment LED Display, 2 x 14.2mm (0.56”) + 16x2 LCD |
| Probe Inputs | NTC, Defrost (Coil) |
| Digital Input | Phase input from pressure trip (HP/LP/OSS), Digital Door I/P |
| Relay Outputs | Compressor : 8(2)A Defrost : 8(2)A Condenser : 8(3)A Evaporator : 8(3)A Alarm : 5A |
| Power Supply | 230Vac Standard |
| Temperature Range | -50°C to +50°C |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount, Panel Cutout : 92 x 92mm |
| Application | Freezer, Cold Room |
FREEZER / COLD ROOM CONTROLLER SZ-CRC-1100A
